Shaper Diamond Technology: Unparalleled strength, unyielding durability
3 Years
| Ask Lasest Price | |
| Brand Name : | Infi |
| Model Number : | CVD |
| Certification : | Non Certificate |
| Price : | To be negotiated |
| Payment Terms : | T/T |
| Supply Ability : | >1000pcs per month |
| Delivery Time : | 7-10Work days |
Product description:

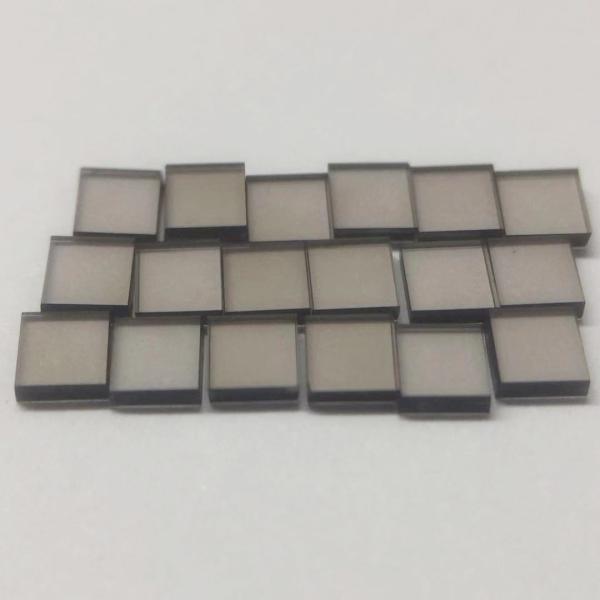

3x3x1.5mm, We can provide mechanical grade and optical grade, 100
and 110 crystal orientations . the other thickness such as 0.3mm,
0.5mm, 1.0mm 2.0mm are also availbale
Product details:
| Crystal growth process: | Mono CVD |
| Color: | Mechanical grade - Brownish |
| Advantage: | 1) Regular shape, uniform size. The size can be strictly controlled according to customer needs. |
| 2) High repurchase rate and high cost performance, well received by customers. | |
| 3) No visible growth lines, no black spots, no impurities, no crack. | |
| Orientation: | 100 (all 6 planes 100) |
| 110 (Top and bottom 100, four sides 110) | |
| 2pt/110 | |
| Shape: | Retangular |
| Edges | Laser Cut |
| Laser Kerf | 3° - 4° |
| Lateral Tolerance: | +0.1/-0 mm |
| Thickness Tolerance | +/- 0.05 mm |
| Available size | 1mm - 15mm |
| Available thickness | 0.1- 5mm |
| Micro-hardness | 80-150Gpa |
| Young modulus | 1150-1130Gpa |
| Boron Concentration [B]: | <0.05 ppm |
| Nitrogen Concentration: | Mechanical grade 50 ppm - 100 ppm |
Packing and shipping:
| Selling Units: | Single item |
| Single package size: | 18X18X10 cm |
| Port: | Changsha |
| Single gross weight: | 0.500 kg |
Package: small sealed plastic bag and carton(strong and safe
package) Delivery: usually 3-7 working days after the payment
confirmation
Transportation: DHL, TNT, Fedex, UPS or as per your request.
|
|
